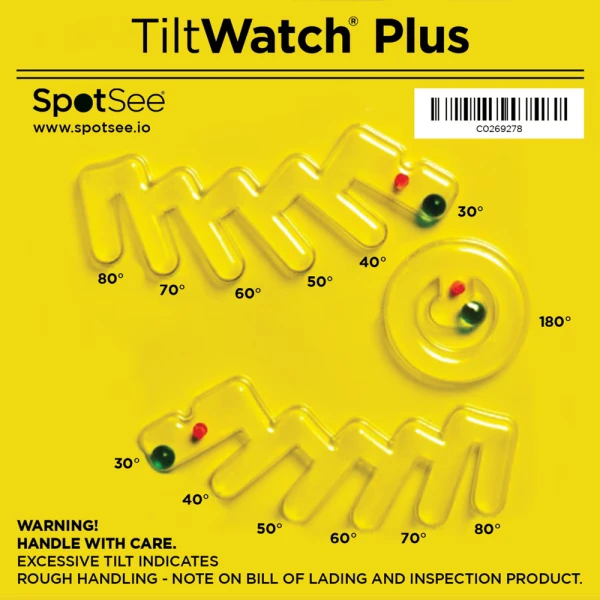

TiltWatch Plus indicates whether there has been tilt to the left or right, the degree of the tilt, or if a complete overturn has occurred. TiltWatch Plus consists of three separate indicators in a single unit. One section indicates the degree of tilt to the left. The second section indicates the degree of tilt to the right. The third section indicates total overturn.



Reduce mishandling during transportation or storage.



Features:

- Degree of tilt detection

- Complete overturn detection

- Glass balls (non-magnetic)

- Tamper-proof



Monitoring Range	Single plane and rollover
Activation Angle	10° increments from 30° axis (±5°)
Adhesive	1 mil high-tack acrylic
Humidity Tolerance	5% to 99% noncondensing
Temperature Tolerance	-40°F to 140°F | -40°C to 60°C
Composition	Clear PTE housing and plastic indicator
Size	4.6 in x 4.6 in x 0.3 in | 116.84 mm x 116.84 mm x 7.62 mm
Installation	Pressure-sensitive adhesive exposed when liner and arming pin are peeled away
Adhesive Shelf Life	12 months (before application)
